Solithos PA66 Dual-Function Cable Gland: IP68, UL94-V0, -40°C

A premium dual-function integrated waterproof connector engineered for industrial automation, robotics, electrical enclosures, outdoor equipment, and new energy systems. It eliminates the industry pain points of traditional solutions—separate cable glands and pipe fittings, double installation steps, and seal failure at cable-pipe junctions. Achieve "One Installation, Dual Waterproof Protection" to fulfill all your needs for cable locking, corrugated pipe connection, sealing, and waterproofing in a single step.

Specifications

Product Name	Dual-function waterproof connector
Material	Nylon 66
Type	Metric/PG/G/NPT
Protection level	IP68
Brand Name	Solithos
Place of Origin	Zhejiang, China
Feature	Protect Wire Safety
Sample	Free samples
Certification	ISO9001,CE,RoHS,UL94-V2
Customization	Black/Customization
Application scenarios	Panel Distribution Box
Working temperature	-40℃～+110℃ short term 130℃
MOQ	100 pcs
Production capacity	5000,000 pcs/month
HS code	3917400000

Applications

The PA66 dual-function waterproof corrugated pipe connector is widely used in industrial, outdoor, and new energy fields, focusing on scenarios that require high waterproof, high durability, and efficient installation. Key application scenarios include:

- Industrial Automation: Cable connection and waterproofing for automated production lines, conveyor systems, and control cabinets, adapting to high-vibration working environments.

- Robotics: Cable locking and corrugated pipe connection for robotic arms, collaborative robots, and AGVs, ensuring stable operation under dynamic movement.

- Outdoor Electrical Equipment: Waterproof connection for outdoor lighting, surveillance cameras, traffic signal devices, and communication base stations, resisting rain, dust, and UV radiation.

- New Energy Systems: Cable protection for solar photovoltaic (PV) systems, wind power equipment, and energy storage cabinets, complying with environmental and safety standards.

- Electrical Enclosures: Sealing connection between cables and corrugated pipes for electrical junction boxes, distribution boxes, and control panels, eliminating waterproof blind spots.

- Construction Machinery: Cable and pipe connection for excavators, cranes, and engineering vehicles, withstanding high impact, vibration, and harsh outdoor conditions.

- Marine & Underwater Equipment: Waterproof connection for marine instruments, underwater sensors, and shipboard electrical systems, meeting IP68 immersion requirements.

- Cold Storage & High-Temperature Environments: Cable protection for cold storage equipment, high-temperature ovens, and industrial furnaces, adapting to -40℃~120℃ extreme temperatures.

- Medical Equipment: Environmentally friendly (halogen-free) cable connection for medical devices, complying with strict hygiene and safety standards.

- Automotive Industry: Cable and corrugated pipe connection for automotive wiring harnesses (industrial vehicles, electric vehicles), withstanding oil, corrosion, and vibration.

Advantages

Product Features
Dual-function integrated (locks cable + connects corrugated pipe)	One installation, dual waterproof protection, cost & efficiency improvement, no protection blind spots
100% virgin PA66 nylon	High strength, deformation-resistant, flame retardant, suitable for high-vibration/dynamic working conditions
Halogen-free EPDM sealing ring	Environmentally compliant, global export access, aging & chemical corrosion resistant
UL94 V-0 flame retardant	Electrical safety upgrade, eliminates fire hazards, meets industrial safety standards
IP68 high waterproof rating	100% dust-tight & watertight, suitable for wet, outdoor, and underwater environments
Tool-free quick installation	60% higher installation efficiency, reduces labor costs, suitable for mass production
Wide temperature range (-40℃~120℃)	All-scenario adaptation, stable operation in extreme environments, reduces after-sales costs

PA66 Dual-Function Waterproof Corrugated Pipe Connector - One Installation, Dual Protection

✅ Locks Cable & Connects Corrugated Pipe Simultaneously

✅ 100% Virgin PA66 Nylon, UL94 V-0 Flame Retardant

✅ EPDM Halogen-Free Sealing, RoHS Compliant

✅ IP68 Waterproof, -40℃~120℃ Wide Temperature Range

✅ Tool-Free Quick Installation, Ideal for Industrial Automation & Robotics

FAQ

Q1: What is the core advantage of this dual-function connector compared to traditional separate cable glands and pipe fittings?

A1: The biggest advantage is one-stop integration—it locks cables and connects corrugated pipes in a single installation, eliminating the need for dual procurement and double installation steps. It boosts efficiency by 60%, reduces labor costs, and avoids water leakage at the cable-pipe junction (a common flaw of traditional separate fittings).

Q2: What is the IP rating of this connector, and what does it mean for practical use?

A2: It has an IP68 waterproof rating, which means it is 100% dust-tight (no dust can enter) and can be immersed in water at a certain depth for a long time without water ingress. It is fully suitable for wet, outdoor, and even underwater working scenarios (e.g., marine equipment, outdoor surveillance).

Q3: Why choose 100% virgin PA66 nylon instead of recycled materials?

A3: Recycled PA/PP materials are brittle, easy to deform, and fail quickly under vibration or extreme temperatures, leading to frequent replacements and high after-sales costs. 100% virgin PA66 nylon offers high strength, toughness, and flame retardancy (UL94 V-0), ensuring long-term reliability even in high-vibration scenarios like robotic arms and construction machinery.

Q4: Is this connector compliant with EU environmental standards (RoHS)? Can it be exported directly?

A4: Yes, it is fully compliant with RoHS certifications. The EPDM sealing ring is halogen-free, and the 100% virgin PA66 nylon contains no harmful impurities, making it suitable for direct export to Europe, the Middle East, and other global markets without compliance risks.

Q5: What is the temperature range of this connector, and where can it be used?

A5: It can operate stably in a temperature range of -40℃ to 120℃. It is suitable for extreme environments such as cold storage (low temperature), high-temperature industrial equipment, and outdoor areas with large temperature differences, without brittleness or deformation.

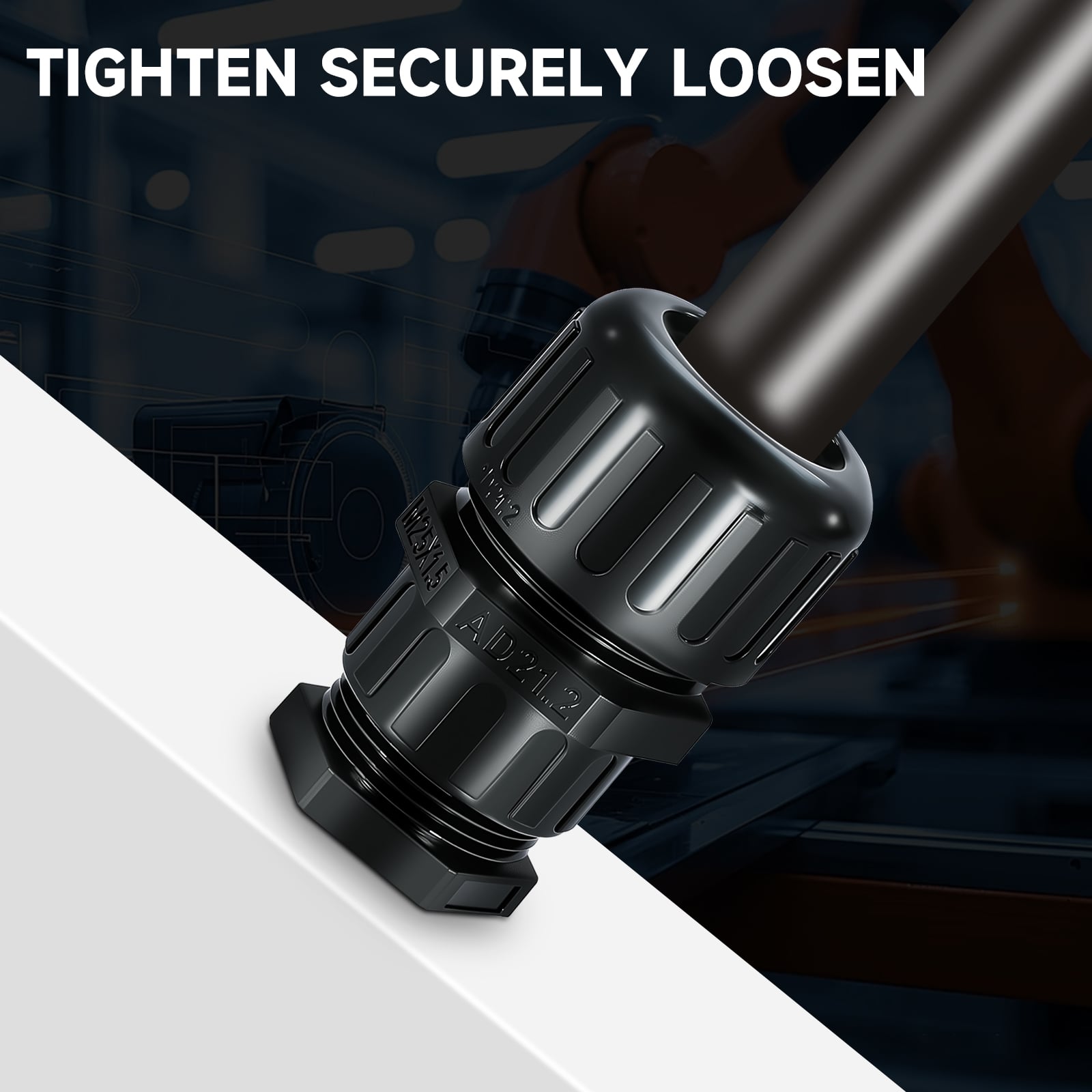

Q6: Is installation tool-free? How long does it take to install one connector?

A6: Yes, it adopts ahand-tighten tool-free design—no wrenches or other tools are needed. One connector can be installed in 3-5 seconds, which is very suitable for mass assembly on automated production lines and helps shorten project cycles.

Q7: Can this connector be used with different sizes of corrugated pipes and cables?

A7: Yes, we provide multiple specifications to match different corrugated pipe diameters (e.g., 10mm, 12mm, 16mm, 20mm) and cable diameters. Please contact our sales team to confirm the appropriate specification based on your specific pipe and cable sizes.

Q8: What is the service life of this connector, especially in outdoor environments?

A8: The combination of 100% virgin PA66 nylon and EPDM sealing ring ensures excellent aging resistance, UV resistance, and corrosion resistance. In outdoor environments, its service life can reach more than 10 years, greatly reducing replacement and maintenance costs.

Q9: Does the connector have flame retardant performance? Is it suitable for electrical safety-sensitive scenarios?

A9: Yes, it meets UL94 V-0 flame retardant standard—it will self-extinguish within 10 seconds after removing the fire source, eliminating electrical fire hazards. It is very suitable for electrical enclosures, new energy systems, and other safety-sensitive scenarios.
