- Industrial automation & control systems
- Electrical cabinet & control panel wiring
- Machinery & equipment internal wiring
- Automotive interior wiring harnesses
- Dry indoor electrical installations
- 90° corner & tight space wiring projects
Why Choose Our 90° Elbow Conduit Fittings?
✅ Material Guarantee: High-quality PA nylon, high strength & durability
✅ 90° Elbow Design: Perfect for corner wiring, no pipe bending needed
✅ Multi-Thread Compatible: Metric / PG / British, one-stop solution
✅ Tool-Free Quick Install: Save labor cost, improve efficiency
✅ Wide Temperature Range: -40℃~125℃, stable in harsh conditions
✅ High Compressive Strength: Step-proof, no deformation
✅ Cost-Effective: Non-waterproof, ideal for dry indoor use
✅ Certified Quality: ISO, CE, SGS, RoHS certified
Advantages
1. Premium PA Nylon Material – High Strength & Durability
- Your Pain Point: Cheap plastic elbow fittings crack easily, age prematurely, and deform under pressure, leading to conduit disconnection and cable damage.
- Our Benefit: High-grade PA nylon provides superior toughness and rigidity, impact-resistant and aging-resistant. It maintains structural integrity for years, eliminating unexpected failures and replacement costs.

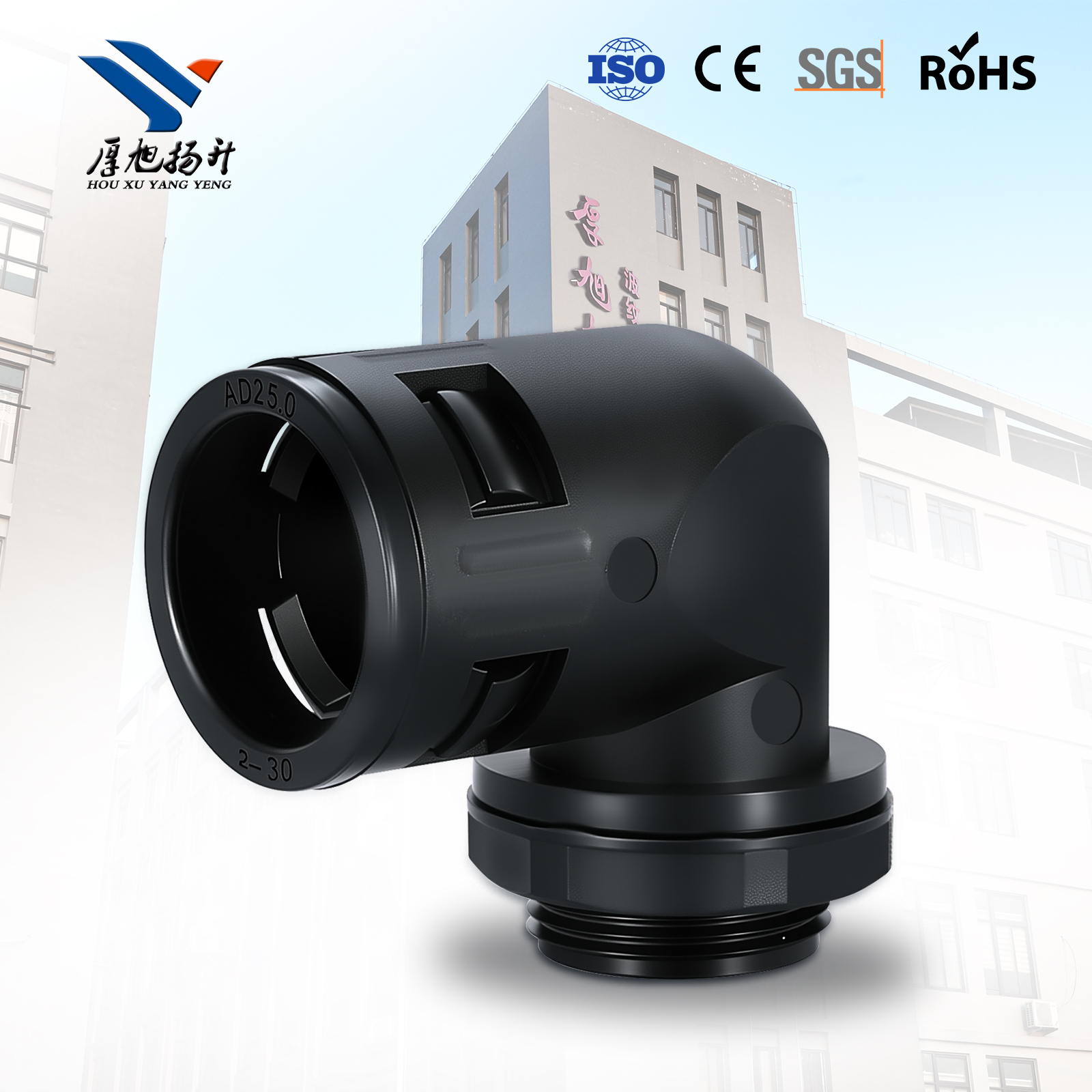

2. Integrated 90° Elbow Design – Perfect for Corner Wiring
- Your Pain Point: Straight fittings require bending conduits at corners, causing pipe damage, cable squeezing, and messy wiring, reducing installation efficiency.
- Our Benefit: One-piece 90° elbow design fits perfectly for cabinet and equipment corner wiring, no need to bend conduits, avoiding pipe and cable damage, and achieving neat, professional wiring.
3. Multi-Thread Compatibility (Metric / PG / British) – One-Stop Solution
- Your Pain Point: Single-thread fittings cannot match different equipment enclosures, requiring multiple SKUs, increasing inventory costs, and causing installation rework due to wrong selection.
- Our Benefit: Available in Metric, PG (German), and British thread standards, compatible with all mainstream electrical cabinets and equipment interfaces. Reduce inventory SKUs, lower procurement costs, and avoid selection errors.

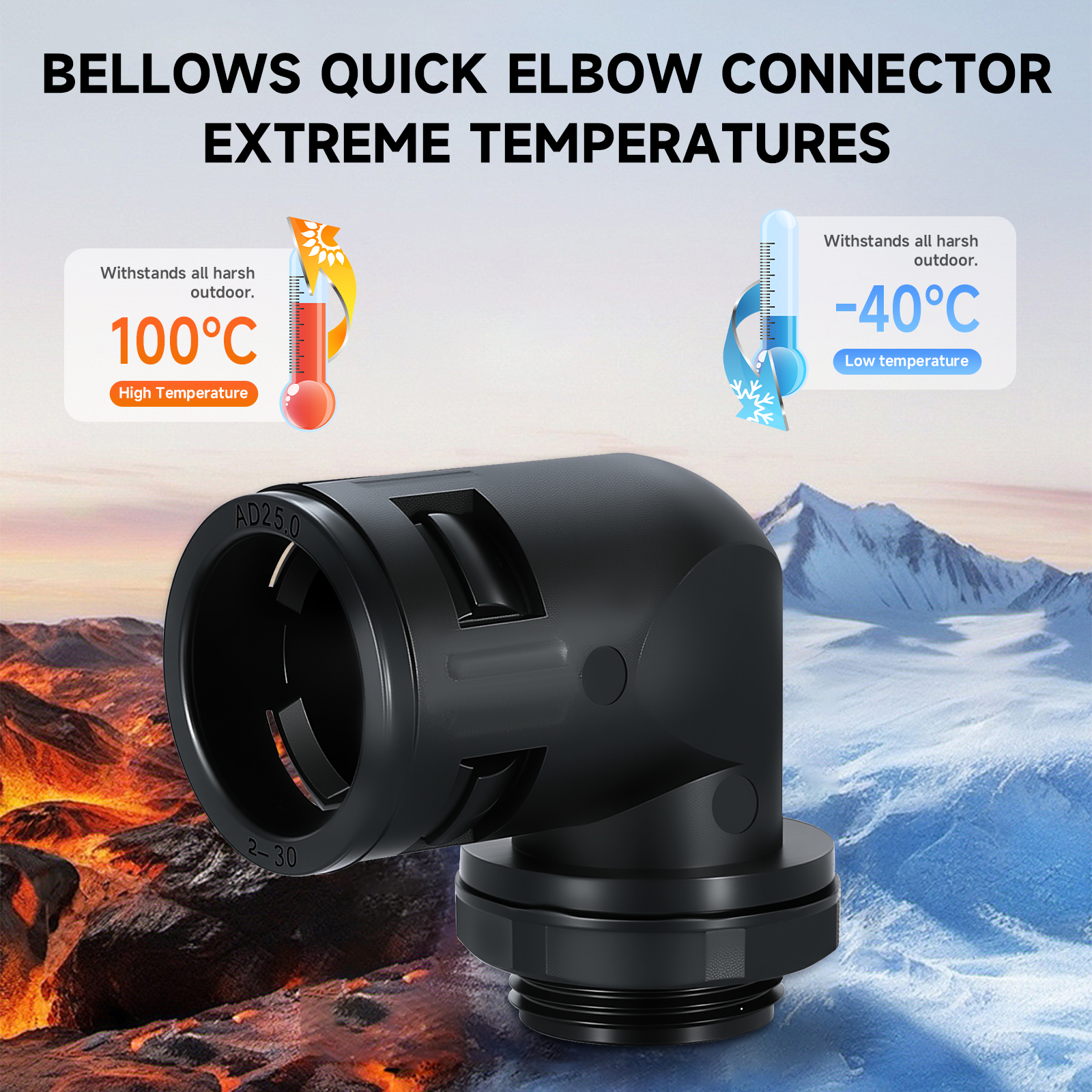

4. Wide Temperature Range – Stable Performance in Harsh Conditions
- Your Pain Point: Ordinary fittings deform or become brittle in extreme temperatures (e.g., industrial high heat, cold storage), losing structural strength and causing conduit disconnection.
- Our Benefit: Operates reliably from -40°C to 125°C, maintaining shape and strength in extreme heat or cold. Perfect for industrial, automotive, and harsh indoor environments.
5. Tool-Free Quick Installation – 80% Faster Installation
- Your Pain Point: Traditional elbow fittings require wrenches for installation, time-consuming and difficult in tight spaces, leading to high labor costs and delayed projects.
- Our Benefit: Quick-release design allows hand-only installation and removal, no tools needed. Installation efficiency increased by 80%+, easy operation in narrow spaces, saving labor time and project costs.
6. High Compressive Strength – Step-Proof, No Deformation
- Your Pain Point: Thin-walled elbow fittings deform under foot traffic or mechanical impact, causing conduit disconnection and cable damage.
- Our Benefit: Reinforced PA nylon structure with high compressive strength, step-proof and non-deformable. Withstands mechanical impact and pressure, keeping conduit connected at all times.
7. Non-Waterproof Design – Cost-Effective for Dry Indoor Use
- Your Pain Point: Waterproof fittings have complex structures and high costs, which are unnecessary for dry indoor applications, leading to wasted budget.
- Our Benefit: Non-waterproof design with a simpler structure and lower cost, perfectly suited for dry indoor cabinet and equipment wiring, meeting basic protection needs and reducing procurement costs.
FAQ
1. What is a 90° elbow quick connector?
A tool-free, right-angle snap-fit fitting for corrugated pipes, enabling 90° direction change with secure sealing.
2. Key advantages?
3-5x faster installation than threaded elbows; tool-free and anti-pullout.
3. Compatible pipes?
Fits standard AD-series PA/PP/PE corrugated pipes (e.g., AD10-AD54.5).
4. Installation & Removal?
Install: Cut pipe flat, insert until "click". Remove: Press side tabs, pull straight out.
5. IP Rating?
Standard: IP65.
6. Material?
High-strength PA66 nylon: V0 flame retardant, oil/chemical resistant, -10℃~+85℃ (special: -20℃~+100℃).
7. Thread Options?
Metric (M series: M12-M63×2), PG, G threads for global equipment compatibility.
8. Explosion-proof?
Standard models for general industry. Choose Ex-certified versions for hazardous areas.
9. How to Select Size?
Match connector AD size to pipe outer diameter, and thread to equipment mounting hole.
10. Quality & Warranty?
Rigorous quality testing; long service life. Supports OEM/ODM customization & bulk orders.
